Data Communications

Data communications refer to the exchange of digital information between two or more devices through a transmission medium such as wires, cables, radio waves, or optical fibers. The goal of data communications is to transfer data from a source to a destination device accurately and efficiently.

Data communications include various technologies and protocols that ensure reliable and secure transmission of data. Examples of data communication technologies include Ethernet, Wi-Fi, Bluetooth, cellular networks, and satellite communications. Data communication protocols specify rules and procedures for transmitting and receiving data, ensuring that data is properly formatted and error-free during transmission.

Data communications are used in various applications such as internet browsing, email, file sharing, video conferencing, and online gaming. They are also essential for many industries, including telecommunications, finance, healthcare, transportation, etc.

The fundamental characteristics of data communications include:

1. Delivery: Data communications must ensure that data is delivered from the sender to the intended receiver without loss or corruption. This means that the communication channel must be reliable enough to transmit the data without any interruptions or loss of packets. For example, in wireless networks, interference from other devices or obstacles such as walls can cause loss of packets, which can impact the overall delivery of data. To ensure delivery, data communications may employ techniques such as error detection and correction, retransmission, and flow control.
2. Accuracy: Data communications must ensure that data is accurately transmitted from the sender to the receiver without errors or distortion. This means that the data must remain intact and unchanged during transmission, even if it passes through multiple devices and media. For example, noise or distortion in the communication channel can cause errors or corruption of data, which can impact the accuracy of the transmission. To ensure accuracy, data communications may use techniques such as encoding, encryption, and checksums.
3. Timeliness: Data communications must ensure that data is transmitted and received within an acceptable time frame, depending on the specific application requirements. For example, in real-time applications such as VoIP and video conferencing, delays in transmission can lead to degraded quality or dropped calls. To ensure timeliness, data communications may use techniques such as prioritization, queuing, and traffic shaping.
4. Jitter: Jitter refers to the variation in the time it takes for packets or data to travel from the sender to the receiver over the communication channel. In other words, it is the difference in latency between different packets or data streams. Jitter can be caused by a variety of factors, including network congestion, routing delays, and other network issues. It can impact the quality of the transmission and cause issues such as packet loss, out-of-order packets, and degraded performance.
5. Security: Data communications must ensure that data is transmitted and received securely, protecting it from unauthorized access, interception, or modification.
6. Reliability: Data communications must ensure that the transmission and reception of data are reliable, consistent, and predictable, even in the presence of noise or other disturbances.
7. Compatibility: Data communications must ensure that devices from different manufacturers and with different specifications can communicate with each other using common standards and protocols.
8. Scalability: Data communications must be able to handle increasing volumes of data traffic and support the addition of new devices and users as needed.

The components of data communications include:

1. Sender: The sender is the device that originates the message or data and sends it over the communication channel. The sender is the device or software that initiates the transmission of data over the communication channel. It is responsible for formatting the data into a format that can be transmitted over the channel and initiating the transmission. For example, a computer or a smartphone can act as a sender in a communication network.
2. Receiver: The receiver is the device that receives the message or data sent by the sender. The receiver is the device that detects and demodulates the signal received from the communication channel and then converts it back into the original message or data. The receiver is the device or software that receives the data transmitted over the communication channel. It is responsible for decoding the received data and delivering it to the intended recipient. For example, a computer or a smartphone can act as a receiver in a communication network.
3. Medium: The medium is the physical path or channel that carries the data from the sender to the receiver. The medium can be wired or wireless and may include copper wires, optical fibers, radio waves, or satellite links. The medium is the physical or wireless path over which the data is transmitted from the sender to the receiver. It can be a wired medium such as copper wires or optical fibers or a wireless medium such as radio waves or infrared. The choice of medium depends on the specific application requirements, distance, bandwidth, and other factors.
4. Transmitter: The transmitter is the device that converts the message or data into a signal that can be transmitted over the communication channel. The transmitter may also modulate the signal to adapt it to the specific characteristics of the medium. The transmitter is the device or software that converts the data from the sender into a signal that can be transmitted over the communication channel. It is responsible for modulating the signal to adapt it to the characteristics of the medium and amplifying the signal to ensure that it can travel over the distance required. For example, a modem can act as a transmitter in a communication network.
5. Protocol: A protocol is a set of rules that governs the transmission of data between devices. It defines the format of the data, how it is to be transmitted, and how errors are to be detected and corrected. The protocol is a set of rules and standards that govern the transmission of data over the communication channel. It specifies the format of the data, the procedures for initiating and terminating communication sessions, and the error detection and correction techniques used to ensure the accuracy and reliability of the transmission. Some examples of widely used communication protocols include TCP/IP, HTTP, and FTP.
6. Interface: The interface is the physical or logical connection between the device and the communication channel, allowing the device to transmit and receive data.
7. Modem: A modem is a device that converts digital data into analog signals that can be transmitted over the communication channel, and vice versa.
8. Multiplexer: A multiplexer is a device that combines multiple data streams into a single stream for transmission over a shared communication channel.
9. Demultiplexer: A demultiplexer is a device that separates the combined data stream back into its individual data streams at the receiving end.
10. Error detection and correction: Error detection and correction techniques are used to ensure that data is transmitted accurately and without errors. This may include techniques such as parity checks, checksums, and cyclic redundancy checks (CRC).

Information can take different forms depending on its representation and the media used to store and transmit it. Some common forms of information include:

1. Text: Textual information is represented as characters, words, and sentences in written or printed form. Text can be stored and transmitted as digital data in various file formats such as TXT, DOC, PDF, and HTML. Text is commonly used in documents, books, articles, and web pages.
2. Graphics: Graphics refer to visual representations of information, including images, diagrams, charts, and graphs. Graphics can be stored and transmitted in various file formats such as JPEG, PNG, GIF, and SVG. Graphics are commonly used in marketing materials, presentations, reports, and websites.
3. Audio: Audio information is represented as sound waves and can be stored and transmitted as digital data in various file formats such as MP3, WAV, and FLAC. Audio is commonly used in music, podcasts, voice recordings, and phone calls.
4. Video: Video information is represented as a sequence of images or frames that are played back at a specific rate. Video can be stored and transmitted in various file formats such as MP4, AVI, and MOV. Video is commonly used in movies, TV shows, advertisements, and online streaming platforms.
5. Data: Data refers to raw, unprocessed information that is used for analysis, modeling, and decision-making. Data can take many forms, including numerical data, text data, image data, and sensor data. Data can be stored and transmitted in various formats such as spreadsheets, databases, and data streams.

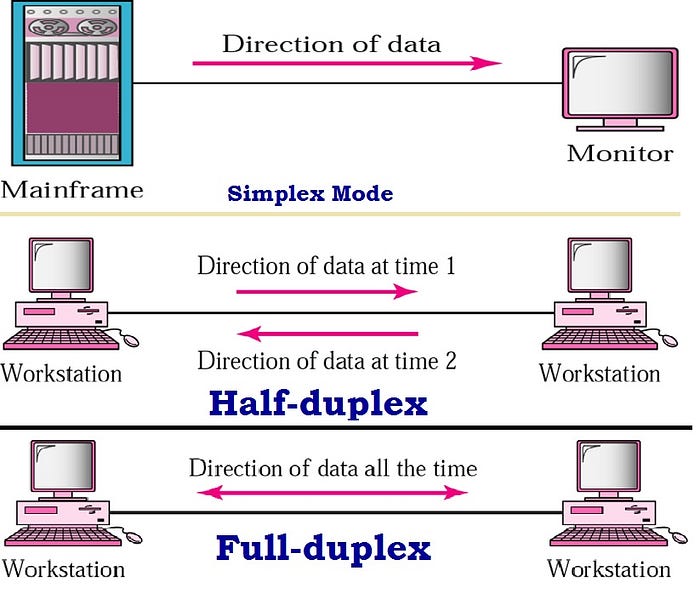

In data communication, simplex, half-duplex, and full-duplex are three methods of data flow that describes the direction and timing of data transmission between two communicating devices. Let’s take a closer look at each method:

1. Simplex: In simplex communication, data is transmitted in only one direction, from the sender to the receiver. The receiver can only receive the data and cannot send any data back to the sender. Simplex communication is one-way communication and is commonly used in situations where only one-way communication is required. Examples of simplex communication include radio broadcasts, TV broadcasts, and traffic signal lights.
2. Half-duplex: In half-duplex communication, data is transmitted in both directions, but only one device can transmit data at a time. When one device is transmitting data, the other device is in the receiving mode, and when the transmission is complete, the devices switch roles. Half-duplex communication is like a walkie-talkie, where only one person can talk at a time, and the other person can only listen. Examples of half-duplex communication include two-way radios, Ethernet networks, and some types of telephony systems.
3. Full-duplex: In full-duplex communication, data is transmitted in both directions simultaneously, allowing for bi-directional communication at the same time. Both devices can transmit and receive data simultaneously, without the need to switch roles. Full-duplex communication is like a telephone conversation, where both parties can talk and listen at the same time. Examples of full-duplex communication include cellular phones, fiber optic networks, and satellite communication systems.

LAN and WAN are two different types of computer networks, each with its own characteristics and applications. The main differences between LAN and WAN are:

1. Geographic Area: LAN (Local Area Network) covers a small geographical area, such as a building, campus, or office, while WAN (Wide Area Network) covers a large geographical area, such as a country, continent, or even the entire world.
2. Ownership and Control: LAN is usually owned and controlled by a single organization or individual, while WAN is typically owned and controlled by multiple organizations or service providers.
3. Connectivity: LAN is designed to provide high-speed connectivity between devices within a limited geographical area, while WAN is designed to provide connectivity between geographically dispersed devices over long distances.
4. Transmission Technologies: LAN typically uses Ethernet, Wi-Fi, or other high-speed wired or wireless technologies, while WAN typically uses technologies such as leased lines, satellite links, or fiber optics for long-distance transmission.
5. Speed and Reliability: LAN provides high-speed and reliable connectivity, while WAN may suffer from slower speeds, latency, and network congestion due to the long distances involved.
6. Security: LAN is typically more secure than WAN, as it is easier to control access to the network and monitor network traffic within a limited area. WAN, on the other hand, requires more robust security measures to protect against threats such as hacking and cyber attacks.

In summary, LAN is a small-scale network designed for high-speed and reliable connectivity within a limited geographical area, while WAN is a large-scale network designed for connectivity between geographically dispersed devices over long distances. The choice of network type depends on the specific needs and requirements of the organization or individual, as well as the available resources for implementation and maintenance.

TCP/IP (Transmission Control Protocol/Internet Protocol) is a suite of communication protocols used to connect hosts on the internet. It provides a set of rules and standards that allow devices to communicate with each other over a network.

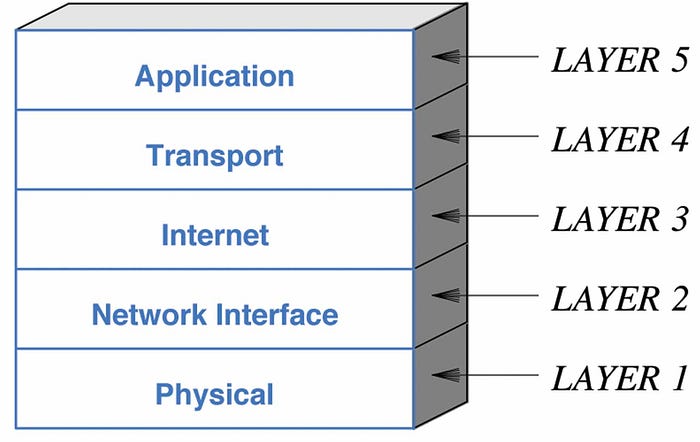

The TCP/IP architecture is based on a layered approach, with each layer providing a specific set of services and functions. The layers are:

1. Physical layer: The physical layer is responsible for transmitting raw data bits over a physical medium such as copper, fiber optic cables or wireless communication. It defines the electrical, mechanical, and procedural specifications for transmitting data over the network. The physical layer is concerned with issues such as cable types, connectors, pin assignments, data rates, modulation schemes, signal quality, and transmission distance.
2. Data link layer: The data link layer provides reliable transfer of data between two nodes on the same local network. It ensures that data is transmitted without errors, and provides mechanisms for flow control and access to the physical layer. The data link layer is divided into two sublayers: the Logical Link Control (LLC) sublayer and the Media Access Control (MAC) sublayer. The LLC sublayer provides services to the network layer, while the MAC sublayer provides services to the physical layer.
3. Network layer: The network layer provides logical addressing and routing of data packets between different networks. It is responsible for creating and managing IP addresses, determining the best route for data transmission, and handling fragmentation and reassembly of packets. The network layer is where IP (Internet Protocol) resides, along with other protocols such as ICMP (Internet Control Message Protocol), ARP (Address Resolution Protocol), and RARP (Reverse Address Resolution Protocol).
4. Transport layer: The transport layer provides end-to-end communication between hosts on different networks. It manages the reliability of data delivery and provides flow control and congestion control. The transport layer is divided into two protocols: TCP (Transmission Control Protocol) and UDP (User Datagram Protocol). TCP is a connection-oriented protocol that provides reliable delivery of data, while UDP is a connectionless protocol that provides unreliable delivery of data.
5. Application layer: The application layer provides services to end-users such as file transfer, email, web browsing, and streaming media. It provides an interface between the network protocol stack and user applications. The application layer is where protocols such as HTTP (Hypertext Transfer Protocol), SMTP (Simple Mail Transfer Protocol), FTP (File Transfer Protocol), and DNS (Domain Name System) reside.

There are two main methods for transmitting digital signals: baseband transmission and broadband transmission.

1. Baseband transmission: In baseband transmission, the digital signal is directly transmitted over a single communication channel without any modulation. This means that the signal occupies the entire bandwidth of the channel. The most common example of baseband transmission is the transmission of data over a wire, such as Ethernet or USB. Baseband transmission is simple and inexpensive to implement but has limited range due to the attenuation of the signal over distance. It also requires a dedicated communication channel, which can limit the number of devices that can be connected to the network.
2. Broadband transmission: In broadband transmission, the digital signal is modulated onto a carrier signal with a higher frequency than the digital signal, and then transmitted over a communication channel. This means that multiple signals can be transmitted simultaneously over the same communication channel by using different frequency bands. The most common example of broadband transmission is cable television, where multiple television channels are transmitted over the same cable using different frequency bands. Broadband transmission allows for higher data rates and longer distances compared to baseband transmission, but is more complex and expensive to implement. It also requires additional hardware for modulation and demodulation of the signal, which adds to the cost and complexity of the system.

Transmission impairment refers to any distortion, interference, or noise that affects the quality or integrity of a signal as it travels over a communication channel. These impairments can affect both analog and digital signals, and can be caused by various factors, including attenuation, distortion, interference, and noise.

1. Attenuation: Attenuation is the loss of signal strength or power as it travels over a communication channel. Attenuation can be caused by the resistance of the transmission medium (such as wire, fiber optic cable, or air), which absorbs or dissipates the signal energy. Attenuation can cause a reduction in the amplitude or intensity of the signal, leading to a loss of signal quality or even complete signal loss.
2. Distortion: Distortion occurs when the signal is altered or modified in some way as it travels over the communication channel. Distortion can be caused by various factors, including reflections, refractions, and diffraction of the signal waves. This can lead to changes in the shape or form of the signal, resulting in signal distortion or corruption.
3. Noise: Noise refers to any unwanted signals or random fluctuations that are present in the communication channel. Noise can be caused by various factors, including thermal noise from the transmission medium or electronic components, shot noise from the random nature of electron flow, or other external sources such as cosmic radiation. Noise can degrade the quality of the signal and increase the error rate in digital communications.

To overcome transmission impairment, various techniques are used, including amplification, equalization, filtering, modulation, and error correction coding. These techniques help to improve the signal quality, reduce errors, and ensure reliable transmission over the communication channel.
